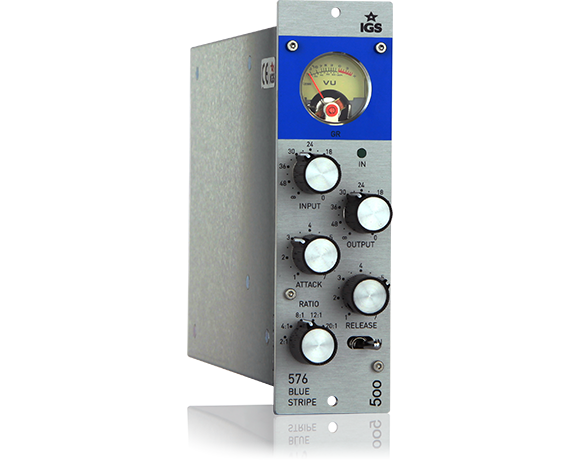

The FET-type solution was first used for its application in the legendary UREI 1176 compressor from the 70s. The most important feature inspired by revision A is the input transformer used and pure class A output stage. The compressor is equipped with a relay bypass, 2:1 Ratio and Slam Mode accessible on the front panel.
The 576 BS’s major selling point is its ultra-fast attack time — 20 µS. The 576 BS Ratio buttons allow four different modes of operation: 2:1 Ratio (soft compression); 4:1 ratio (moderate compression); 8:1 ratio (severe compression); 12:1 ratio (mild limiting); 20:1 ratio (hard limiting); S – SLAM, All Buttons In trick mode.
DEVICE TYPE Fet Compressor Yes BASIC FEATURES Stereo Link Yes (linkable in PSU) INPUT & OUTPUT Input Impedance (balanced) 2.4k, Carnhill transformer Output Impedance (balanced) 600 Ohm, Carnhill transformer Audio transformers Yes, Carnhill on input and output LEVELS Operating Level +4 dBu Max input level +20 dBu Max output level +22 dBu Noise Level -99 dBA Max. gain 36 dB Max Gain Reduction -20 dB TIME CONSTANTS Ratio 2:1, 4:1, 8:1, 12:1, 20:1, Slam (All in) Attack: 20us - 800us Release: 50ms - 1.1s BANDWIDTH Frequency response 8 Hz to 20 kHz, +/- 0.1dB DISTORTION (@ 20 HZ - 20 KHZ) THD+N 0.014% POWER Power consumption 2.5W PACKING BOX Shipping weight 1kg - Zusatzinformation
-
Zusatzinformation
UPC / EAN Nein Shipping Dimensions Nein Herstellungsland Polen Lieferzeit Nein Farbe silber Hersteller IGS Zustand Neu
